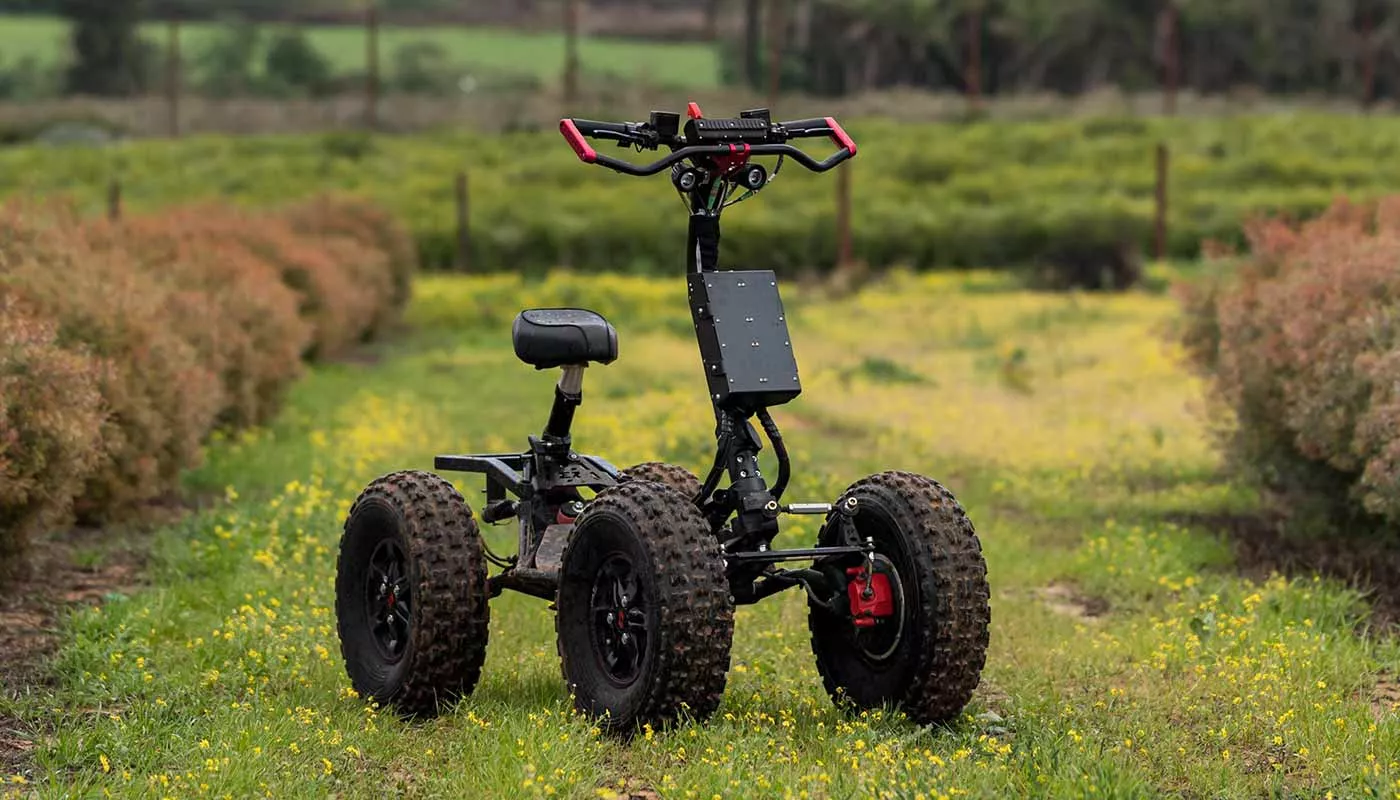

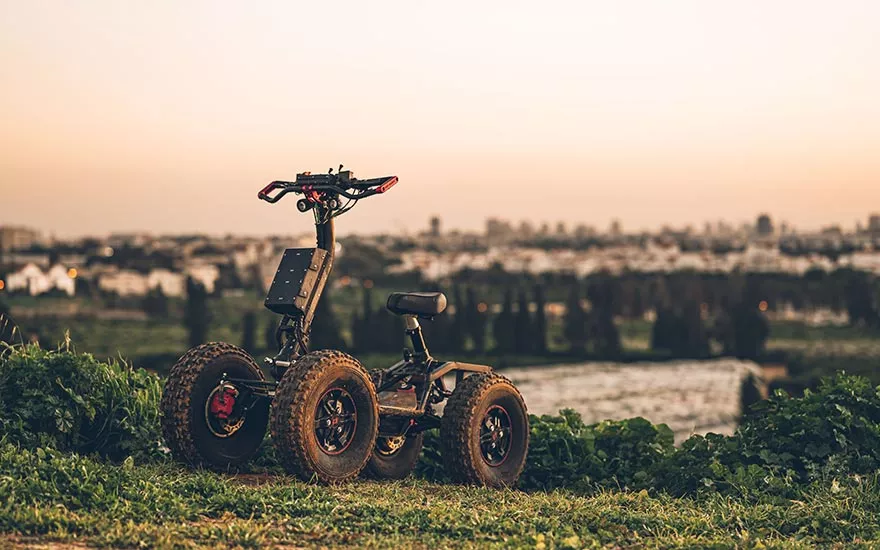

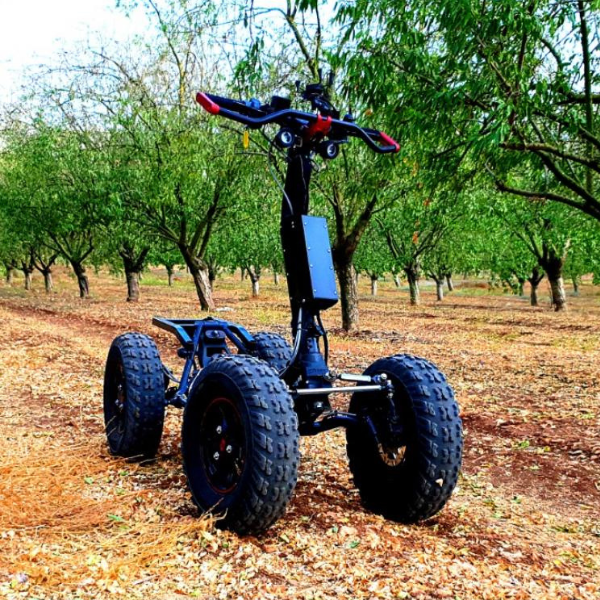

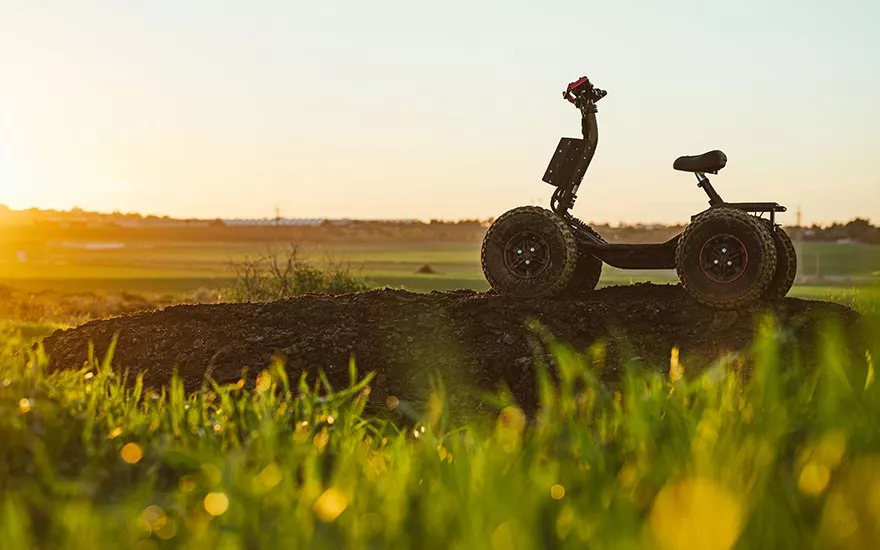

EZ Raider HD4
Technical Specification
Display Panel:
Includes battery operational function keys (optional)
Hand Guard:
For maximum safety
Front Lighting: LED
Removable Seat
Standing Board
TIRE 22x7 – 10
HD SUSPENSION
RUBBER FOR
CARRYING HEAVY WEIGHTS
LITHIUM-ION 60V –
2700 W/H BATTERY
ELECTRICAL
CONNECTION TO
THE E-CART
1200W MOTOR
IN ALL 4 WHEELS
HD LUGGAGE RACK
HD STEERING ARMS
COMPACT AND EASILY
FOLDABLE FOR TRANSPORT
– CAN FIT INTO THE
TRUNK OF A PICK-UP
/ STATION WAGON
CONTROLLERS BOX
Length
170 cm / 67"
Width
74 cm / 29"
Height
135 cm / 53"
Height Folded
75 cm / 30"
Estimated Dry Weight
130 kg / 280 lb
Max Speed
Up to 40 Km/hr/24.8 mile
Max Range
80 Km/49.7 miles
Download our brochure for additional details and full specifications.
Performance
EZRaider family product offers an all-new driving experience. The meticulous development and our innovative features guarantee a smooth ride on any terrain. Traveling in terrain soil or
cruising in the urban view, you can rest assured this vehicle won’t let you down!
Terrains
Maintenance
Safety
Design
Functional Uses
Driving through town or extreme off-roading? EZRaider is your ideal choice! Our compact, unique design makes us the ultimate solution for all your mobility needs; a sturdy, dependent work tool, or a rugged but safe extreme sports vehicle, EZRAIDER can be used by individuals or in groups for fieldwork, security detail and fun
SECURITY
ARMIES & SPECIAL FORCES
HLS
HARD TERRAIN
Technology
EZRAIDER sets a new standard in personal mobility, placing state of the art technology right in your grip. So much more than an off-road vehicle, the EZRAIDER is a completely new, patent protected concept in maneuverability. Intuitive to operate, this fully electric ATV is designed for use in both urban environments and backwoods trails. Features include advanced all wheel’s drive (AWD), hub motors with direct wheels transmission, energy efficiency capability and payload capacity about twice vehicle weight, all integrated with a unique and simplicity of design.
Motor
AWD system with two or four (based on the model) direct transmission wheel hub motors that feed direct torque to each wheel independently, providing maximum efficacy.
Controllers
Fully functional EV controllers for a smooth driving experience, with a specific controller for each motor to maximize efficiency.
Energy Efficiency
Regenerative braking system captures kinetic energy from the vehicle’s momentum to recharge the battery.
Braking System
BREAKING SYSTEM Hydraulic brake discs on each wheel, front and back brake handles for maximum control and improved safety, including hand brake capability
Battery
Lithium-Ion 60-volt battery, high capacity 1740 W-Hr / 2700 W-Hr.
Suspension Mechanism
Patent-protected 3D suspension mechanism long travel to overcome obstacles in difficult off-road conditions for extreme maneuverability.
Payload Capacity
Capable of hauling about twice its weight, maximum 200 kg.
Mobility Without Limits.
Costumers Reviews
It’s a beast! The HD4 goes through mud, creeks, mountain hills… and will pull anything you need… It has enough power to get you to the moon!
RICHARD, HEAD HUNTER
This thing lives and breathes raw power. I am yet to experience something this machine can not do! Ground clearance great… destroys the mud… EZRAIDER HD4 is very predictable, and a blast to drive!!
IAN, ADRENALINE JUNKIE
I bought my HD4 about eight months ago. It literally revolutionized the way we work on the farm. Zero problems, a very reliable machine that is just fun to work with…
